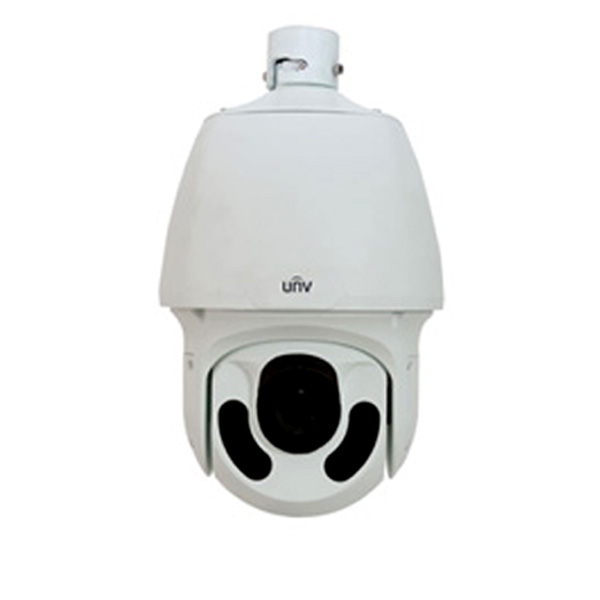

• NETWORK CAMERA

  IPC6221LR-X20S(P)

  	IPC6221LR-X20S	IPC6221LR-X20SP
  Camera
  Sensor	1/3″, 1.3 Megapixel, progressive scan, CMOS
  Lens	4.7 ~ 94 mm (20x optical zoom)
  Angle of View (H)	59.7° (wide) ~ 3.8° (tele)
  Iris	Auto/Manual; F1.6 ~ F3.3
  Shutter	Auto/Manual; shutter time: 1/15 s ~ 1/10000 s
  Minimum Illumination	Color: 0.03 lux (F1.6, 50IRE) B/W: 0.01 lux (F1.6, 50IRE)
  S/N	>50dB
  Day/Night	IR-cut filter with auto switch (ICR)
  Video
  Max. Resolution	1280 × 960
  Video Compression	H.264,MJPEG
  Frame Rate	960P (1280×960):Max.30 fps; 720P (1280×720):Max.30 fps; D1 (720×576):Max.25 fps
  Video Streaming	Triple
  OSD	Up to 8 OSDs
  Privacy Mask	Up to 8 areas
  Digital Zoom	Supported
  Network
  Protocols	L2TP,IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,PPPoE,RTP,RTSP, NTP,FTP,HTTP,SNMP,SIP
  Compatible Integration	ONVIF, IMOS,API
  Pan & Tilt
  Pan Range	360° (endless)
  Pan Speed	0.1°/s ~ 240°/s
  	Preset speed: 300°/s
  Tilt Range	–15° ~ 90° (auto reverse)
  Tilt Speed	0.1° ~ 160°/s
  	Preset speed: 240°/s
  Number of Preset	256
  Patrol	Up to 16 patrols, up to 32 presets per patrol Note: The total number of patrols and patterns is 16.
  Pattern	Up to 16 patterns, with the total recording time not less 15 minutes per pattern
  Interface
  Network	10M/100M Base-TX Ethernet
  General
  Power Supply	24 V AC, 24 V DC	24 V AC, 24 V DC, PoE
  	Power consumption: 9 ~ 42W (IR:16W, heater: Max. 24 W)
  Dimensions (Ø x H)	Ø227 x 359.4 mm (Ø8.9” x 14.2”)
  Weight	5.28 kg (11.6 lb)
  Working Environment	–40°C ~ 65°C (-40°F ~ 149°F), Humidity ≤ 90% RH(non-condensing)
  Ingress Protection	IP66
