Description

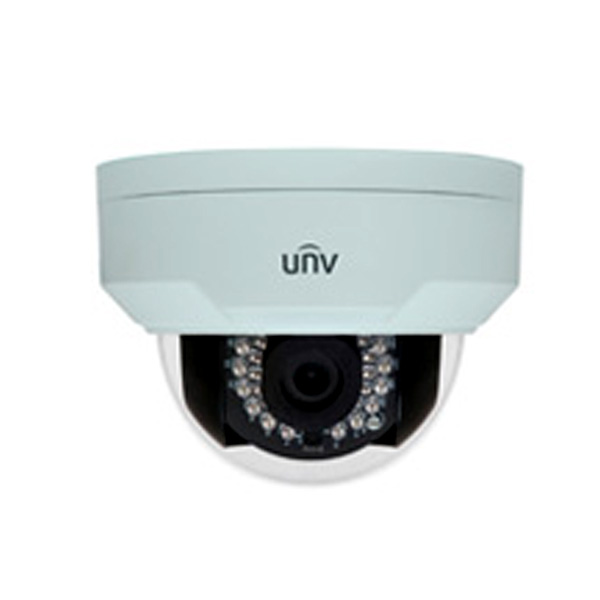

NETWORK CAMERA  IPC322ER3-DVPF28(36)(60)

• Camera
  Sensor	1/2.7″, 2 megapixel, progressive scan CMOS
  Shutter	Auto/Manual, 1/6~1/8000 s
  Lens	2.8 mm@F2.0 Angle of view(H): 109.9°	3.6 mm@F2.0 Angle of view(H): 84°	6.0 mm@F2.0 Angle of view(H): 54.9°
  Day/Night	IR-cut filter with auto switch (ICR)
  Min. Illumination	Colour: 0.02 Lux (F2.0, AGC ON) 0 Lux with IR
  S/N	>52 dB
  WDR	Optical WDR(up to 120dB)
  Video
  Max. Resolution	1920 × 1080
  Video Compression	H.264, MJPEG
  Frame Rate	1080P (1920*1080): MAX. 30 fps; 720P (1280*720): MAX. 30 fps
  9:16 Corridor Mode	Supported
  ROI	Supported
  Video Streaming	Triple
  OSD	Up to 8 OSDs
  Privacy Mask	Up to 4 areas
  Audio
  Audio Compression	G.711
  Two-way audio	Supported
  Storage
  Edge Storage	Micro SD, up to 128 GB
  Network
  Protocols	L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, NTP, FTP, HTTP
  Compatible Integration	ONVIF, API
  Interface
  Audio I/O	Input: impedance 35 kΩ; amplitude 2 V [fusion_builder_container hundred_percent=”yes” overflow=”visible”][fusion_builder_row][fusion_builder_column type=”1_1″ background_position=”left top” background_color=”” border_size=”” border_color=”” border_style=”solid” spacing=”yes” background_image=”” background_repeat=”no-repeat” padding=”” margin_top=”0px” margin_bottom=”0px” class=”” id=”” animation_type=”” animation_speed=”0.3″ animation_direction=”left” hide_on_mobile=”no” center_content=”no” min_height=”none”][p-p]
  	Output: impedance 600 Ω; amplitude 2 V [p-p]
  Alarm I/O	1/ 1
  Network	10M/100M Base-TX Ethernet
  General
  Power	12 V DC, or PoE (IEEE802.3 af)
  	Power consumption: Max 5.5W
  Dimensions (Ø x H)	Φ108.5 x 81 mm (Ø4.28” x 3.2”)
  Weight	0.45 kg (0.99 lb)
  Working Environment	-35°C ~ 60°C (-31°F ~ 140°F), Humidity ≤ 90% RH(non-condensing)
  Vandal Resistant	IK10
  Ingress Protection	IP66
