Description

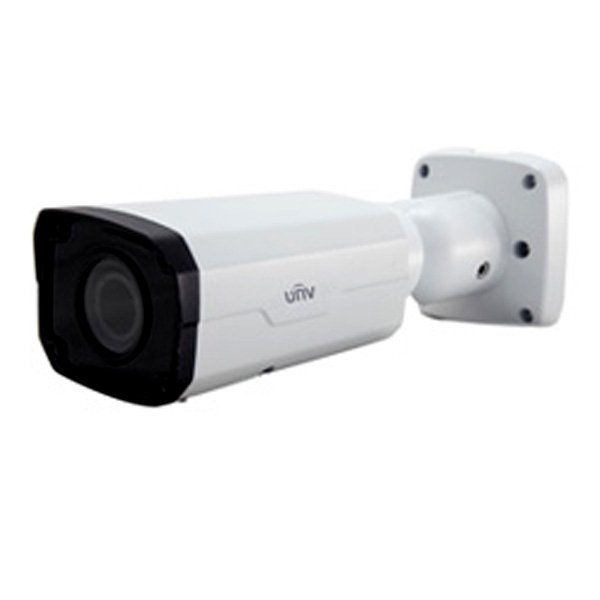

NETWORK CAMERA IPC2322EBR-P

• 	IPC2322EBR-P
  Camera
  Sensor	1/2.8″, 2 Megapixel, progressive scan CMOS
  Shutter	Auto/Manual, 1/6~1/8000s
  Lens	2.8~12 mm@F1.4; Angle of view: 90° ~ 28°
  Zoom/Focus	Manual
  Min. Illumination	Colour: 0.06 Lux (F1.4, 50IRE) Black & White: 0.03Lux (F1.4, 50IRE)
  Day/Night	IR-cut filter with auto switch (ICR)
  S/N	>52dB
  Video
  Max. Resolution	1920 × 1080
  Video Compression	H.264,MJPEG
  Frame Rate	1080P (1920×1080): Max. 30 fps; 720P (1280×720): Max. 30 fps; D1 (720×576): Max. 25 fps
  9:16 Corridor Mode	Supported
  ROI	Supported
  Video Streaming	Triple
  OSD	Up to 8 OSDs
  Privacy Mask	Up to 4 areas
  Audio
  Audio Compression	G.711
  Two-way audio	Supported
  Storage
  Edge Storage	Micro SD, up to 128 GB
  Network
  Protocols	L2TP,IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,PPPoE,RTP,RTSP,Qos,NTP,FTP,HTTP,SNMP,SIP
  Compatible Integration	ONVIF, API
  Interface
  Audio I/O	Audio cable
  	Input: impedance 35 kΩ; amplitude 2 V [fusion_builder_container hundred_percent=”yes” overflow=”visible”][fusion_builder_row][fusion_builder_column type=”1_1″ background_position=”left top” background_color=”” border_size=”” border_color=”” border_style=”solid” spacing=”yes” background_image=”” background_repeat=”no-repeat” padding=”” margin_top=”0px” margin_bottom=”0px” class=”” id=”” animation_type=”” animation_speed=”0.3″ animation_direction=”left” hide_on_mobile=”no” center_content=”no” min_height=”none”][p-p]
  	Output: impedance 600 Ω; amplitude 2 V [p-p]
  Alarm I/O	1 / 1
  Network	10M/100M Base-TX Ethernet
  General
  Power	12 V DC, or PoE (IEEE802.3 af)
  	Power consumption: Max 8W
  Material	Cast aluminum
  Dimensions (L × W × H)	253.4 ×86 ×71.7 mm (9.98” × 3.4” × 2.8”)
  Weight	0.58kg (1.28lb)
  Working Environment	-35°C ~ 60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)
  Vandal Resistant	IK10
  Ingress Protection	IP66
