Description

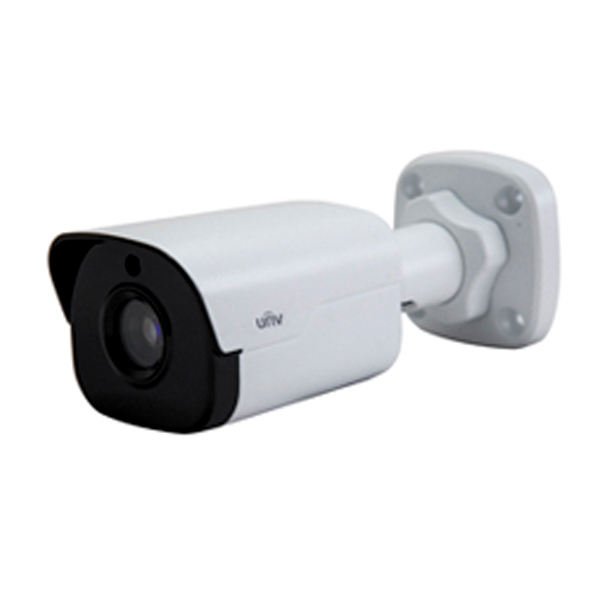

NETWORK CAMERA IPC2124SR3-PF36

Key Features:

• Camera
  Sensor	1/3″, 4.0 megapixel, progressive scan, CMOS
  Lens	3.6mm@F1.8 Angle of view(H): 76.8°	6.0mm@F1.8 Angle of view(H): 49.4°	12.0mm@F1.8 Angle of view(H): 25°
  Shutter	Auto/Manual, 1/6~1/8000 s
  Min. Illumination	Colour: 0.02 Lux (F1.8, AGC ON) 0 Lux with IR on
  Day/Night	IR-cut filter with auto switch (ICR)
  IR Range	Up to 30m (98 ft) IR range
  S/N	>55dB
  WDR	120dB
  Noise Reduction	2D/3D
  Video
  Max. Resolution	2592×1520
  Video Compression	H.265/H.264/MJPEG
  Frame Rate	4MP (2592×1520): Max. 20 fps; 4MP (2560×1440): Max. 25 fps 3MP (2048×1520): Max. 30 fps; 1080P (1920×1080): Max. 30 fps
  Video Streaming	Triple
  9:16 Corridor Mode	Supported
  ROI	Supported
  OSD	Up to 8 OSDs
  Motion Detection	Up to 2 areas
  Privacy Mask	Up to 4 areas
  Smart
  Behavior Detection	Intrusion, crossing line, motion detection
  Intelligent Identification	Face detection
  Statistical Analysis	People counting
  Network
  Protocols	L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x
  Compatible Integration	ONVIF, API
  Interface
  Network	1 RJ45 10M/100M Base-TX Ethernet
  General
  Power	12 V DC, or PoE (IEEE802.3 af)
  	Power consumption: Max 6.4 W
  Dimensions (L × W × H)	157.3 × 62.4 ×63 mm (6.2” × 2.5” × 2.5”)
  Weight	0.45 kg (0.99 lb)
  Working Environment	-35°C ~ 60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)
  Ingress Protection	IP66
